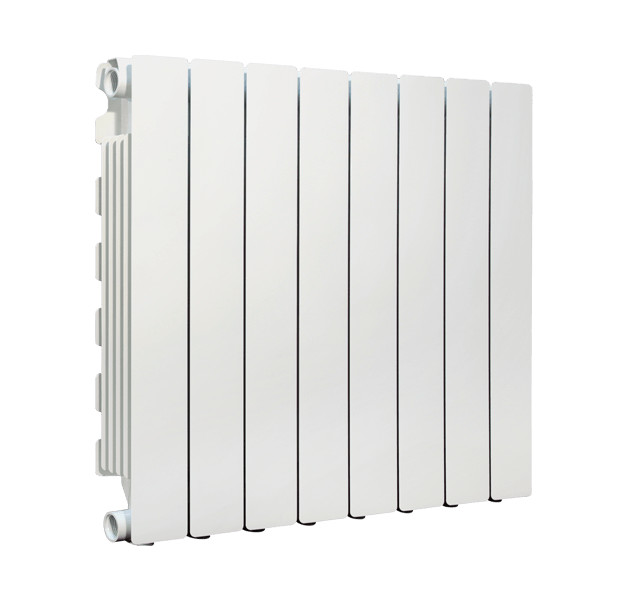

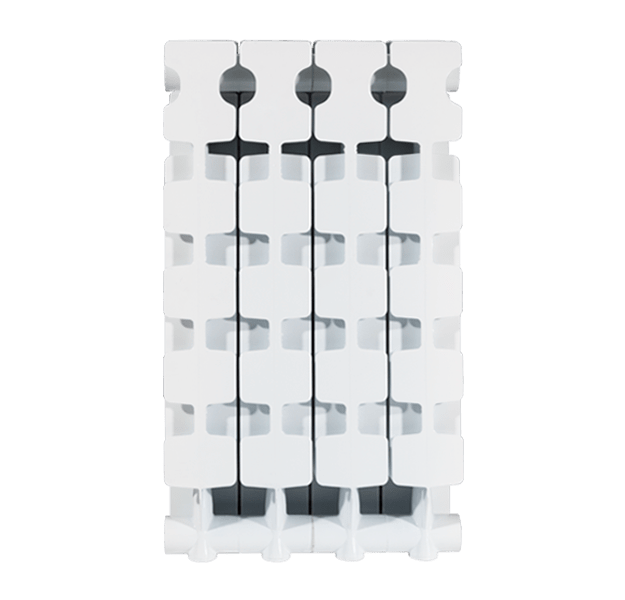

MODERN B4 stems from a research project aimed at optimizing radiator performances in order to offer a product with high mechanical and energetic capabilities.
Colour: Pure White RAL 9010
MODERN B4 stems from a research project aimed at optimizing radiator performances in order to offer a product with high mechanical and energetic capabilities.
Colour: Pure White RAL 9010
Available in the following colors:
All models MODERN B4 are guaranteed 10 years from installation date on manufacturing faults, provided that the installation has been performed in compliance with the current norms and respecting the instructions relating to the installation, the correct use and the correct maintenance.
| Models | Depth (C) mm |
Height (B) mm | Centre distance (A) mm | Length (D) mm | Connection diameters (inches) | Water capacity (litres/sect.) | Heat output (ΔT 30) W |
Heat output (ΔT 50) W |
Exponent n | Coefficient (Km) |
|---|---|---|---|---|---|---|---|---|---|---|
| 350/100 | 97 | 407 | 350 | 80 | G1 | 0,24 | 48,0 | 92,4 | 1,2818 | 0,6139 |
| 500/100 | 97 | 557 | 500 | 80 | G1 | 0,27 | 63,7 | 124,0 | 1,3027 | 0,7587 |
| 600/100 | 97 | 657 | 600 | 80 | G1 | 0,29 | 73,8 | 143,5 | 1,3015 | 0,8822 |
| 700/100 | 97 | 757 | 700 | 80 | G1 | 0,35 | 82,6 | 162,5 | 1,3238 | 0,9155 |
| 800/100 | 97 | 857 | 800 | 80 | G1 | 0,38 | 90,3 | 178,2 | 1,3301 | 0,9796 |
Maximum working pressure: 1600 kpa (16 bar); Maximum working temperature: 120 °C
Characteristic equation of the model Ф=Кm ΔТn
The thermal efficiency values shown comply with the European Standard EN 442-1:2014 and are certified by the MRT Lab of the Milan Polytechnic, notified body №1695.
| Models | No. sections | Depth (C) mm |
Height (B) mm | Centre distance (A) mm | Length (D) mm | Connection diameters (inches) | Water capacity (litres) | Heat output (ΔT 30) W |
Heat output (ΔT 50) W |
Exponent n | Coefficient (Km) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 350 462 W* |
5 | 97 | 407 | 350 | 400 | G1 | 1,2 | 240,0 | 462,0 | 1,2818 | 3,0693 |
| 350 554 W* |
6 | 97 | 407 | 350 | 480 | G1 | 1,44 | 288,0 | 554,4 | 1,2818 | 3,6832 |
| 350 739 W* |
8 | 97 | 407 | 350 | 640 | G1 | 1,92 | 384,0 | 739,2 | 1,2818 | 4,9109 |
| 350 924 W* |
10 | 97 | 407 | 350 | 800 | G1 | 2,4 | 480,0 | 924,0 | 1,2818 | 6,1387 |
| 500 372 W* |
3 | 97 | 557 | 500 | 240 | G1 | 0,81 | 191,1 | 372,0 | 1,3027 | 2,2760 |
| 500 620 W* |
5 | 97 | 557 | 500 | 400 | G1 | 1,35 | 318,5 | 620,0 | 1,3027 | 3,7933 |
| 500 744 W* |
6 | 97 | 557 | 500 | 480 | G1 | 1,62 | 382,2 | 620,0 | 744,0 | 4,5520 |
| 500 992 W* |
8 | 97 | 557 | 500 | 640 | G1 | 2,16 | 509,6 | 992,0 | 1,3027 | 6,0693 |
| 500 1722 W* |
10 | 97 | 557 | 500 | 800 | G1 | 2,7 | 637,0 | 1240,0 | 1,3027 | 7,5866 |
| 500 1488 W* |
12 | 97 | 557 | 500 | 960 | G1 | 3,24 | 764,4 | 1488,0 | 1,3027 | 9,1040 |
| 600 431 W* |
3 | 97 | 657 | 600 | 240 | G1 | 0,87 | 221,4 | 430,5 | 1,3015 | 2,6467 |
| 600 574 W* |
4 | 97 | 657 | 600 | 320 | G1 | 1,16 | 295,2 | 574,0 | 1,3015 | 3,5290 |
| 600 718 W* |
5 | 97 | 657 | 600 | 400 | G1 | 1,45 | 369,0 | 717,5 | 1,3015 | 4,4112 |
| 600 861 W* |
6 | 97 | 657 | 600 | 480 | G1 | 1,74 | 442,8 | 861,0 | 1,3015 | 5,2934 |
| 600 1005 W* |
7 | 97 | 657 | 600 | 560 | G1 | 2,03 | 516,6 | 1004,5 | 1,3015 | 6,1757 |
| 600 1148 W* |
8 | 97 | 657 | 600 | 640 | G1 | 2,32 | 590,4 | 1148,0 | 1,3015 | 7,0579 |
| 600 1435 W* |
10 | 97 | 657 | 600 | 800 | G1 | 2,9 | 738,0 | 1435,0 | 1,3015 | 8,8224 |
| 600 1722 W* |
12 | 97 | 657 | 600 | 960 | G1 | 3,48 | 885,6 | 1722,0 | 1,3015 | 10,5869 |
| 700 488 W* |
3 | 97 | 757 | 700 | 240 | G1 | 1,05 | 247,8 | 487,5 | 1,3238 | 2,7465 |
| 700 650 W* |
4 | 97 | 757 | 700 | 320 | G1 | 1,4 | 330,4 | 650,0 | 1,3238 | 3,6620 |
| 700 813 W* |
5 | 97 | 757 | 700 | 400 | G1 | 1,75 | 413,0 | 812,5 | 1,3238 | 4,5775 |
| 700 975 W* |
6 | 97 | 757 | 700 | 480 | G1 | 2,1 | 495,6 | 975,0 | 1,3238 | 5,4930 |
| 700 1138 W* |
7 | 97 | 757 | 700 | 560 | G1 | 2,45 | 578,2 | 1137,5 | 1,3238 | 6,4085 |
| 700 1300 W* |
8 | 97 | 757 | 700 | 640 | G1 | 2,8 | 660,8 | 1300,0 | 1,3238 | 7,3240 |
| 700 1625 W* |
10 | 97 | 757 | 700 | 800 | G1 | 3,5 | 826,0 | 1625,0 | 1,3238 | 9,1550 |
| 800 535 W* |
3 | 97 | 857 | 800 | 240 | G1 | 1,14 | 270,9 | 534,6 | 1,3301 | 2,9388 |
| 800 713 W* |
4 | 97 | 857 | 800 | 320 | G1 | 1,52 | 361,2 | 712,8 | 1,3301 | 3,9184 |
| 800 891 W* |
5 | 97 | 857 | 800 | 400 | G1 | 1,9 | 451,5 | 891,0 | 1,3301 | 4,8981 |
| 800 1069 W* |
6 | 97 | 857 | 800 | 480 | G1 | 2,28 | 541,8 | 1069,2 | 1,3301 | 5,8777 |
| 800 1247 W* |
7 | 97 | 857 | 800 | 560 | G1 | 2,66 | 632,1 | 1247,4 | 1,3301 | 6,8573 |
| 800 1426 W* |
8 | 97 | 857 | 800 | 640 | G1 | 3,04 | 722,4 | 1425,6 | 1,3301 | 7,8369 |
| 800 1782 W* |
10 | 97 | 857 | 800 | 800 | G1 | 3,8 | 903,0 | 1782,0 | 1,3301 | 9,7961 |
